How to Identify and Close Gaps in Your HVAC Training Lab

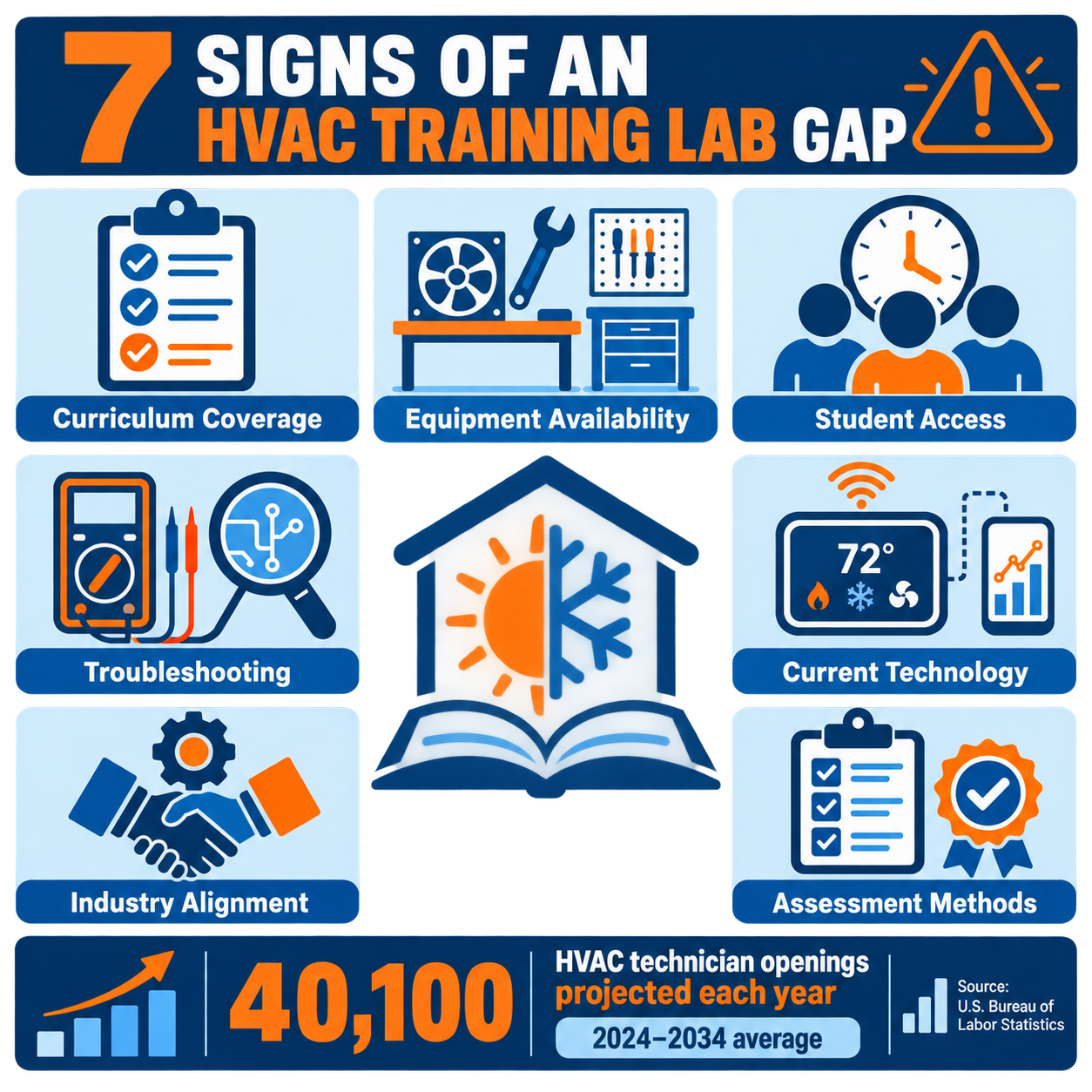

Does the lab enable students to practice and demonstrate every skill identified in the program’s curriculum and learning outcomes?

Does the lab include the systems, components, instruments, and trainers needed to support those outcomes?

Can every student get enough hands-on time to perform procedures independently and repeat them until proficient?

Can students diagnose realistic electrical, mechanical, airflow, and control-system faults?

Does the equipment reflect technologies increasingly found in the field, such as heat pumps, mini-splits, variable-speed systems, electronic controls, and low-GWP refrigerants?

Do lab activities reflect the skills, procedures, and problem-solving abilities expected by local employers?

Can instructors consistently verify that each student can perform essential tasks independently, safely, and correctly?

Map each course objective and required competency to a hands-on lab activity. Look for topics taught through lectures or demonstrations but not practiced and assessed by individual students. The evaluation should include foundational skills as well as complete installation, measurement, maintenance, and diagnostic procedures.

Inspect each training system, tool, instrument, and workstation for safety, reliability, and instructional value. Determine whether equipment represents systems students are likely to encounter in the field. Older equipment may still teach important fundamentals, but it should not be the only technology available if local employers also work with newer systems and controls.

Review class sizes, group sizes, rotation schedules, and the number of available training stations. Observe how much time students spend performing tasks compared with watching an instructor or waiting for equipment. Every student should have opportunities to complete procedures independently, repeat them, and demonstrate proficiency.

Determine whether the lab allows instructors to introduce realistic electrical, refrigeration, airflow, mechanical, and control-system faults. Students should be able to interpret symptoms, select appropriate measurements, isolate the cause, recommend or complete a repair, and verify proper operation.

Confirm that equipment, tools, ventilation, electrical protection, refrigerant-handling procedures, personal protective equipment, and emergency protocols support safe instruction. Safety practices should be incorporated into every lab activity and evaluated as part of student performance.

Evaluate whether instructors have the training, documentation, curriculum resources, and technical support needed to use the lab effectively. Even well-equipped facilities can be underused when instructors lack sufficient time or support to develop practical exercises and assessments.

Ask local employers, advisory committee members, and program graduates which skills new technicians need most—and where they commonly struggle. Compare that feedback with existing lab activities, equipment, and assessments to identify areas that need greater emphasis.

Review how the program measures hands-on competency. Written tests can confirm technical knowledge, but they cannot show whether a student can safely perform a procedure or diagnose a system. Practical assessments should require each student to complete essential tasks independently using clear, consistent performance criteria.

Students should learn to apply lockout/tagout procedures, verify the absence of voltage, use electrical meters safely, and measure voltage, current, resistance, and capacitance. They should also understand how to select the correct meter setting and interpret the resulting measurements.

Students should practice reading schematics, tracing circuits, identifying components, and wiring common HVAC controls. Lab activities should reinforce how thermostats, relays, contactors, transformers, motors, sensors, and safety devices work together.

Students should be able to follow a system from a call for heating or cooling through each stage of operation. Understanding the expected sequence helps them recognize where system operation stops and identify the circuit or component that requires further testing.

Students should practice connecting gauges, measuring temperature and pressure, checking superheat and subcooling, and evaluating system performance. They should also learn proper refrigerant recovery, evacuation, charging, leak-detection, and handling procedures using the refrigerants included in the program.

Students should measure airflow, static pressure, temperature change, and other performance indicators. They should understand how filters, duct restrictions, blower settings, coils, and system design affect comfort, efficiency, equipment reliability, and indoor air quality.

Hands-on activities should cover the systems technicians are likely to encounter in the program’s service area. These may include gas and electric heat, heat pumps, air-conditioning systems, mini-splits, packaged units, and hydronic equipment.

Students should practice tasks such as making electrical connections, installing controls, preparing refrigerant tubing, pressure-testing systems, evacuating lines, and verifying equipment operation. Commissioning activities should teach students to compare measured performance with manufacturer specifications and document their findings.

Students should inspect, clean, adjust, and test HVAC equipment using structured maintenance procedures. They should learn to identify conditions that may reduce efficiency, impair performance, create safety risks, or lead to future equipment failure.

Students should diagnose realistic electrical, mechanical, refrigeration, airflow, and control-system faults. Rather than replacing components based on symptoms alone, they should gather evidence, form a diagnosis, identify the root cause, complete or recommend the appropriate repair, and verify that the system operates correctly.

Students should record measurements, explain diagnostic decisions, complete service documentation, and communicate findings clearly. These skills help future technicians describe problems accurately, support their recommendations, and maintain professional records.

As heat-pump adoption expands, students need experience with heating and cooling modes, reversing valves, defrost cycles, auxiliary heat, balance points, and cold-weather operation. They should be able to measure system performance and troubleshoot common electrical, airflow, and refrigeration faults.

Ductless and multi-zone systems introduce students to installation procedures, inverter-driven compressors, electronic controls, sensors, communication wiring, and manufacturer-specific diagnostics. Students should understand how these systems differ from conventional fixed-capacity equipment.

Modern systems increasingly adjust compressor, fan, and pump output to match operating conditions. Training should help students understand variable-capacity operation, interpret performance data, and diagnose faults in equipment that may not follow traditional on-and-off sequences.

Students should work with electronic thermostats, sensors, integrated control boards, communicating components, and connected diagnostic tools. They should learn how to distinguish a control or communication fault from a mechanical or refrigeration problem.

Programs serving commercial HVAC markets should introduce students to building automation concepts, including sensors, controllers, actuators, system scheduling, alarms, and trend data. Even introductory experience can help students understand how individual HVAC components operate within a larger building system.

Electronic expansion valves require technicians to understand sensors, control logic, stepper motors, and changing system conditions. Students should learn how to evaluate valve operation and determine whether a performance issue originates in the valve, its controls, or another part of the refrigeration system.

Students should be prepared to work safely with the refrigerants used in newer equipment, including applicable A2L refrigerants. Instruction should address refrigerant properties, safe handling, leak detection, recovery procedures, compatible tools, and relevant codes and manufacturer requirements. Federal refrigerant requirements continue to evolve, so programs should regularly review current guidance from the U.S. Environmental Protection Agency.

Modern HVAC work increasingly relies on digital gauges, wireless probes, airflow instruments, combustion analyzers, connected applications, and manufacturer diagnostic software. Students should learn to collect accurate data while also understanding the system principles needed to interpret it.

Training equipment should allow instructors to introduce faults that reflect actual service situations. These may include open or shorted circuits, incorrect wiring, failed sensors, defective capacitors, restricted airflow, improper control settings, refrigerant-system abnormalities, and communication failures.

Faults should increase in complexity as students progress. Beginners may diagnose one clearly defined problem, while more advanced students may work through multiple symptoms, intermittent conditions, or faults that affect several system readings.

Troubleshooting exercises should not provide step-by-step instructions that reveal the answer. Students need opportunities to decide which test to perform, explain why it is appropriate, and use the result to choose their next step. Instructors can evaluate both the final diagnosis and the reasoning behind it.

A correct answer does not always demonstrate competent troubleshooting. A student may guess the failed component or find it through an inefficient process. Practical assessments should consider safety, sequence-of-operation knowledge, instrument selection, measurement accuracy, logical reasoning, root-cause identification, repair verification, and documentation.

Address equipment, tools, and facilities that create safety risks or prevent students from following proper procedures. Priorities may include electrical protection, ventilation, refrigerant handling, personal protective equipment, emergency controls, damaged components, and outdated safety documentation.

Equipment that cannot be operated safely should be repaired, replaced, or removed from instructional use before funds are directed toward program expansion.

Identify essential skills that students cannot currently practice or demonstrate. Focus first on the equipment and learning systems needed to support foundational competencies such as electrical measurement, control wiring, refrigeration procedures, airflow measurement, heating, cooling, heat-pump operation, and preventive maintenance.

Mapping curriculum outcomes to existing lab activities can reveal whether the program has a true equipment need or whether existing resources can be used more effectively.

Increase capacity when limited equipment causes students to spend more time watching or waiting than practicing. Additional workstations, portable trainers, tabletop systems, tool sets, or revised lab layouts may provide greater instructional value than one large, advanced system.

Investments at this level should help more students perform required procedures independently, repeat them, and complete individual skills assessments.

Prioritize equipment that allows instructors to introduce realistic and repeatable faults. Students should be able to troubleshoot electrical, mechanical, refrigeration, airflow, and control-system problems using a structured diagnostic process.

In some cases, adding fault-insertion capabilities or focused troubleshooting trainers may close this gap without replacing an entire system.

Once foundational needs are met, compare the lab with technologies used by regional employers. Upgrade priorities may include heat pumps, mini-splits, inverter-driven systems, electronic expansion valves, communicating controls, building automation, lower-GWP refrigerants, and digital diagnostic tools.

Employer advisory committees and local workforce data can help schools distinguish broadly relevant technologies from specialized equipment with limited regional demand.

Programs can then consider advanced capabilities aligned with their institutional goals and local industries. These may include commercial refrigeration, hydronics, advanced building controls, industrial systems, energy management, or other specialized technologies.

Advisory committees should review more than the program’s general curriculum. Members can examine competency lists, lab activities, equipment, and practical assessments to determine whether they reflect current workplace expectations.

Useful questions include:

• Which tasks should new technicians perform independently?
• Which technical skills are hardest to find in new hires?
• What diagnostic mistakes do entry-level technicians commonly make?
• Which systems and controls are becoming more common?
• Which safety and professional practices need greater emphasis?

Surveys, interviews, and follow-up conversations can reveal where graduates feel prepared and where they struggle after entering the workforce. Employers can also identify skills that were covered in class but not practiced enough for graduates to perform confidently.

Feedback should be tied to specific competencies whenever possible. “Needs stronger troubleshooting skills,” for example, becomes more actionable when the program knows whether the weakness involves electrical testing, wiring diagrams, airflow, refrigeration, controls, or diagnostic reasoning.

Local job postings, workforce reports, service trends, and employer hiring needs can help educators determine which technologies deserve greater attention. A program serving residential contractors may require a different equipment mix than one preparing students for commercial facilities, building automation, refrigeration, or industrial maintenance.

Worksite visits allow educators to observe the equipment, tools, procedures, documentation, and working conditions technicians encounter. Instructor externships provide deeper exposure to current service practices and can generate ideas for realistic lab exercises and assessments.

Industry partners can review the training environment, demonstrate current procedures, participate in student assessments, or help educators develop realistic troubleshooting scenarios. Their observations may reveal gaps in equipment access, workflow, safety practices, documentation, or diagnostic complexity.

Educators and industry partners can map common job responsibilities to program outcomes and hands-on activities. This process helps both groups determine whether students have opportunities to practice and demonstrate the skills employers consider essential.

Industry input can help schools determine whether a proposed upgrade addresses a widespread workforce need or a narrow application. Partners may also provide equipment guidance, instructor training, work-based learning opportunities, donated materials, or support for funding proposals.

X-Cal works with CTE directors, workforce coordinators, instructors, and other stakeholders to define program goals, evaluate available space, identify training gaps, and plan for enrollment. This collaborative process helps schools develop a lab that supports current needs while allowing room for future growth.

Training solutions can be mapped to course objectives, hands-on competencies, and relevant certification pathways. This helps educators confirm that students can practice and demonstrate required skills rather than encounter them only through lectures or instructor demonstrations.

X-Cal offers HVAC/R learning systems featuring industry-standard components and hands-on activities. Available solutions cover foundational and advanced topics such as refrigeration, electrical controls, heat pumps, mini-splits, installation, recovery and charging, geothermal systems, preventive maintenance, and troubleshooting.

Training systems with fault-insertion capabilities allow instructors to introduce realistic problems in a controlled environment. Students can practice interpreting symptoms, following sequences of operation, taking measurements, identifying root causes, and verifying system performance.

Every program has different space, budget, enrollment, and workforce requirements. X-Cal can help schools combine full-size equipment, compact learning systems, and focused trainers to increase student access while supporting a phased implementation plan.

Many HVAC/R training systems include multimedia curriculum that connects technical theory with practical application. Lessons, simulations, quizzes, and assessments give instructors structured resources to prepare students before lab activities and reinforce learning afterward.

X-Cal can help schools plan equipment priorities and explore Perkins and workforce funding opportunities. A documented connection between equipment, student competencies, employer needs, and program outcomes can also strengthen funding proposals.

Instructor onboarding and training help faculty use equipment and curriculum effectively from the start. Ongoing support and expansion planning help programs adapt as enrollment, technology, and regional workforce needs change.

Compare your curriculum and required competencies with the activities each student can perform in the lab. Review equipment availability, hands-on time, troubleshooting capabilities, safety, assessment methods, and alignment with employer needs. A gap exists when students cannot independently practice, repeat, and demonstrate an essential skill under realistic conditions.

An HVAC training lab should include equipment that supports the program’s learning outcomes and regional workforce needs. Core resources may cover electrical controls, refrigeration, airflow, heating, air conditioning, heat pumps, installation, maintenance, and troubleshooting. The right equipment mix depends on the skills being taught, class size, available space, program level, and local industry demand.

Students need hands-on practice in electrical measurement, control wiring, sequence of operation, pressure and temperature measurement, airflow testing, refrigerant procedures, installation, commissioning, preventive maintenance, and troubleshooting. Each student should also practice using technical documentation, recording results, following safety procedures, and communicating diagnostic findings.

Students receive enough equipment time when each learner can independently perform, repeat, and demonstrate required procedures. Track active working time rather than scheduled lab hours alone. Frequent waiting, oversized groups, limited repetition, or assessments completed only as a team may indicate that equipment access is restricting competency development.

Schools should evaluate their HVAC labs regularly and whenever curriculum, enrollment, industry technology, safety requirements, or employer needs change. An annual review can identify immediate concerns and establish future priorities. Equipment doesn't need to be replaced just because it is older, but it should remain safe, functional, instructionally relevant, and supported by current training resources.

Technology priorities should reflect regional employer needs, but programs may need to address heat pumps, mini-splits, variable-speed and inverter-driven equipment, communicating controls, electronic expansion valves, building automation, lower-GWP refrigerants, and digital diagnostic tools. These technologies should complement—not replace—instruction in transferable electrical, refrigeration, airflow, and troubleshooting fundamentals.

Begin with safety issues and missing core competencies, then address student access, troubleshooting, and current technology. Repair or reconfigure useful equipment where practical, and consider compact trainers or additional workstations that allow more students to practice simultaneously. A phased plan can connect each purchase to learning outcomes while supporting grant and funding requests.

Troubleshooting teaches students to apply technical knowledge when equipment does not operate as expected. Students must interpret symptoms, follow the sequence of operation, select appropriate measurements, isolate the root cause, and verify the correction. This structured reasoning prepares graduates to solve real service problems instead of replacing components based on guesses.
