Downsized Control Valve Cutaway

Industrial Maintenance Training
Item Number:
255D
Industrial Maintenance Training
DAC Worldside Cutaways
Hands-On Cutaway Trainers

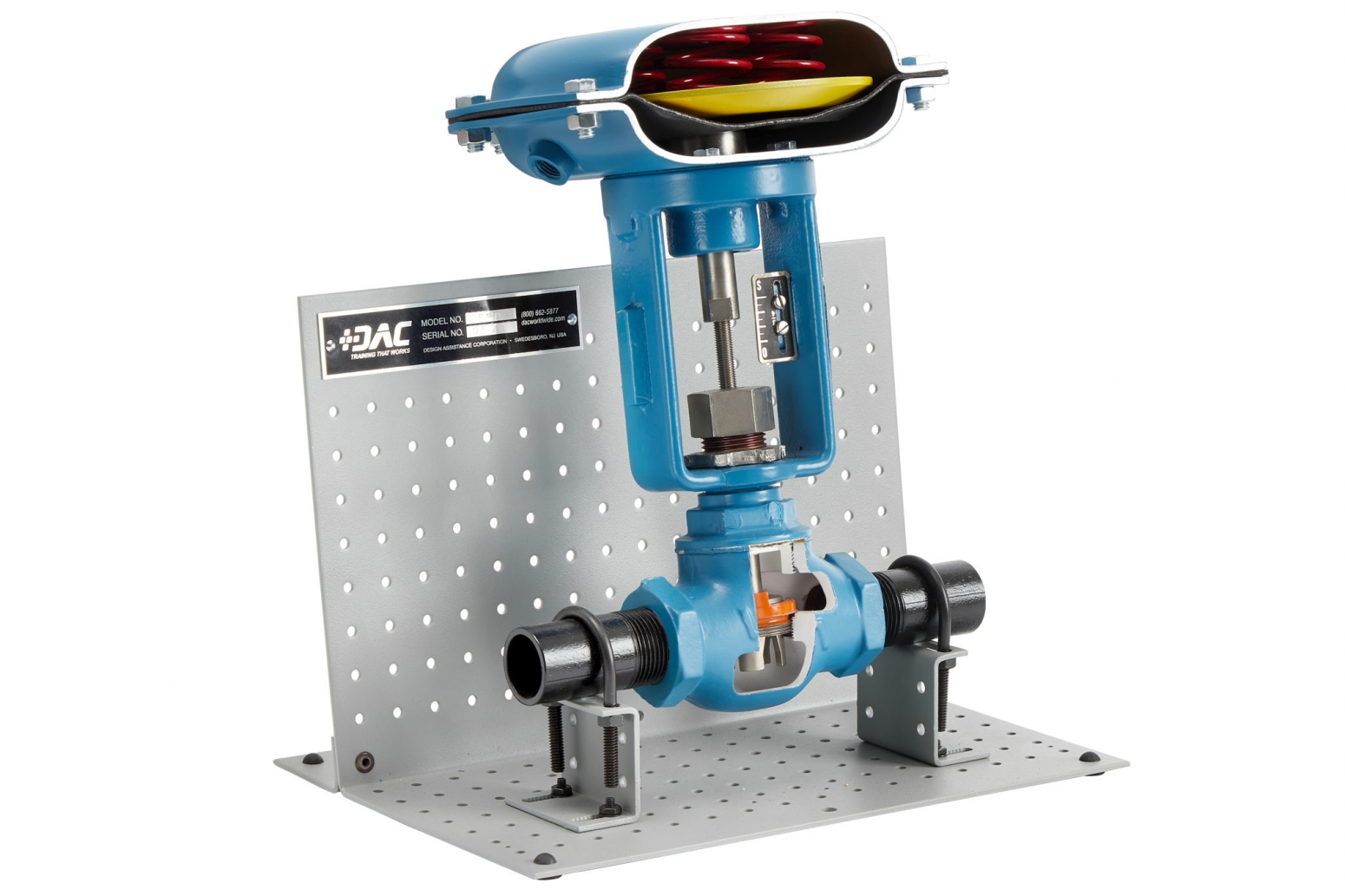

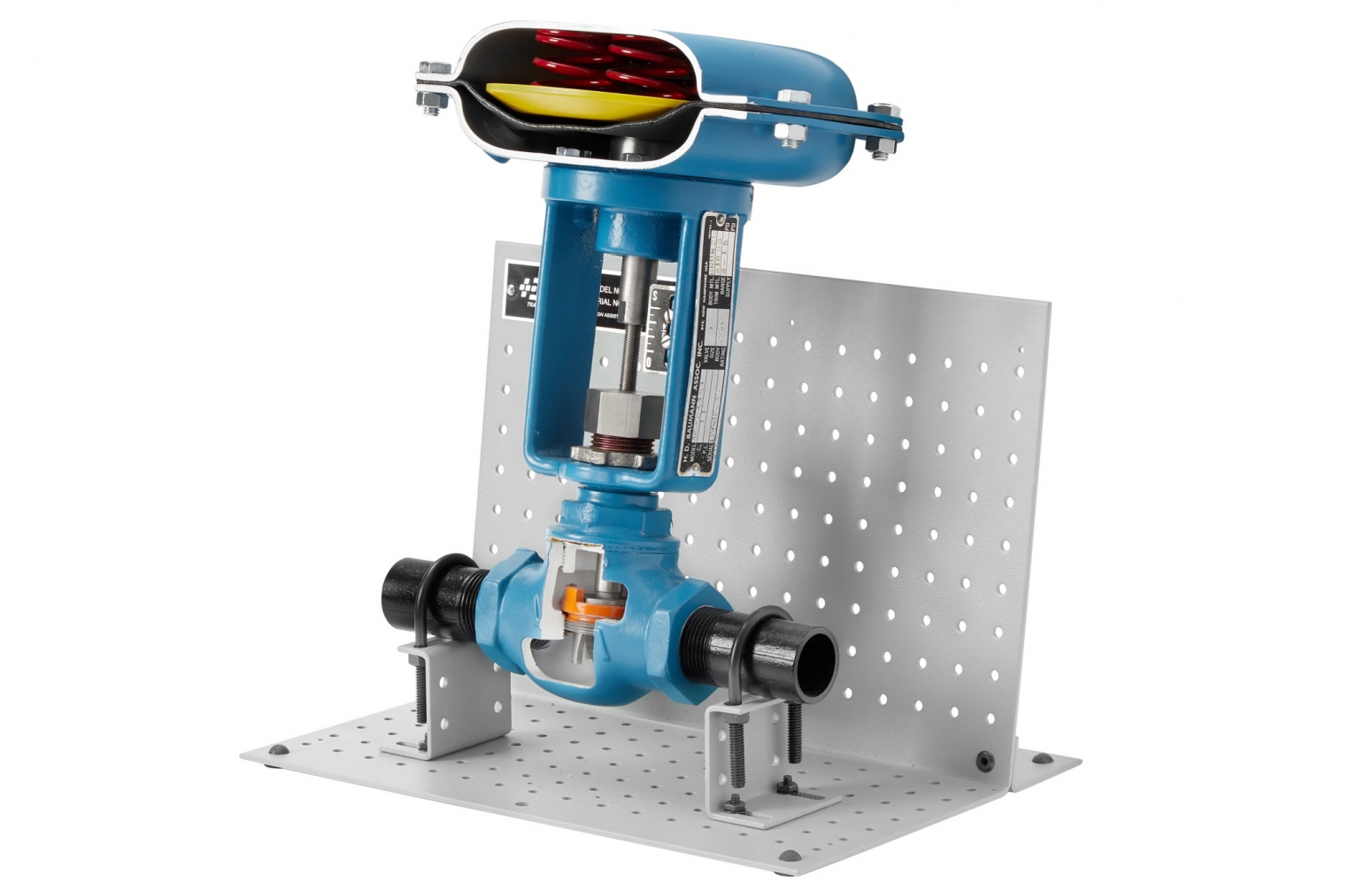

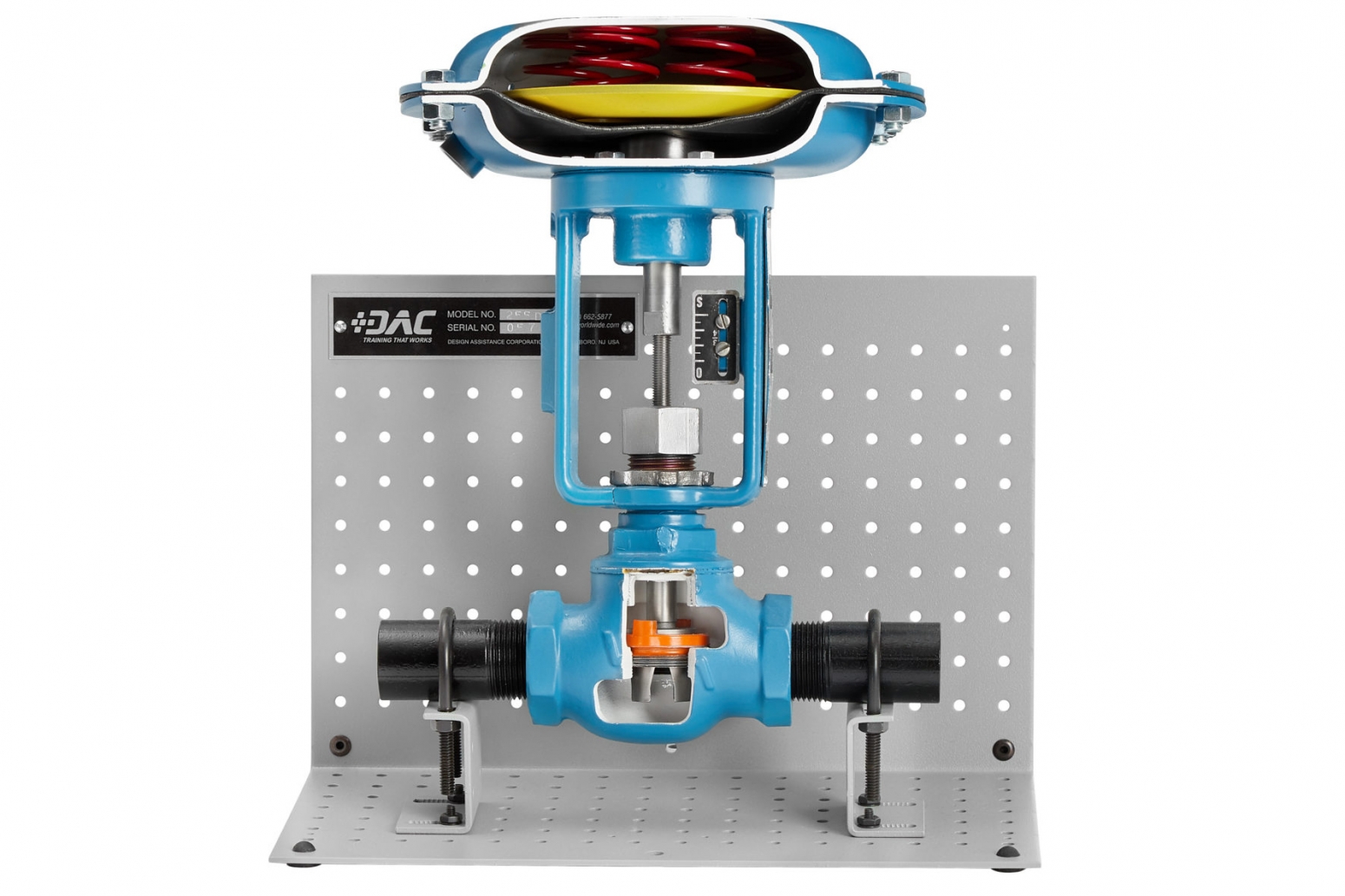

DAC Worldwide's Downsized Control Valve Cutaway (255D) is an economical yet realistic, sectioned valve sample that allows for convenient classroom training in the operation, construction, and maintenance of a pneumatically-operated, control valve. Through carefully planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased. Seal features, actuator components and hardware locations have been retained, allowing for “hands-on” maintenance training.

Features and Specifications

  • Sectioning of actual hardware (common industrial control valve makes and models chosen for industrial relevancy)
  • Cleaning, priming, and painting using a high-durability, urethane coating
  • Color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors
  • Powder-coated internal surfaces
  • Replacement, plated hardware, where necessary
  • All gaskets, seals, and seats shown
  • 13-Gauge, formed-steel, mounting stand and support Assembly with provision for tabletop mounting
  • Provision for mounting on related bench, workstation, and storage rack products

More Information

Product Dimensions

  • 9-in. L X 10-in. W X 16-in. H

Options

  • #902V - Mobile Display Stand

Visit DAC Worldwide for more information on the training models available.
