Enhanced Control Valve Dissectible

Hands-On Technical Skills Trainers

Item Number:

255KE

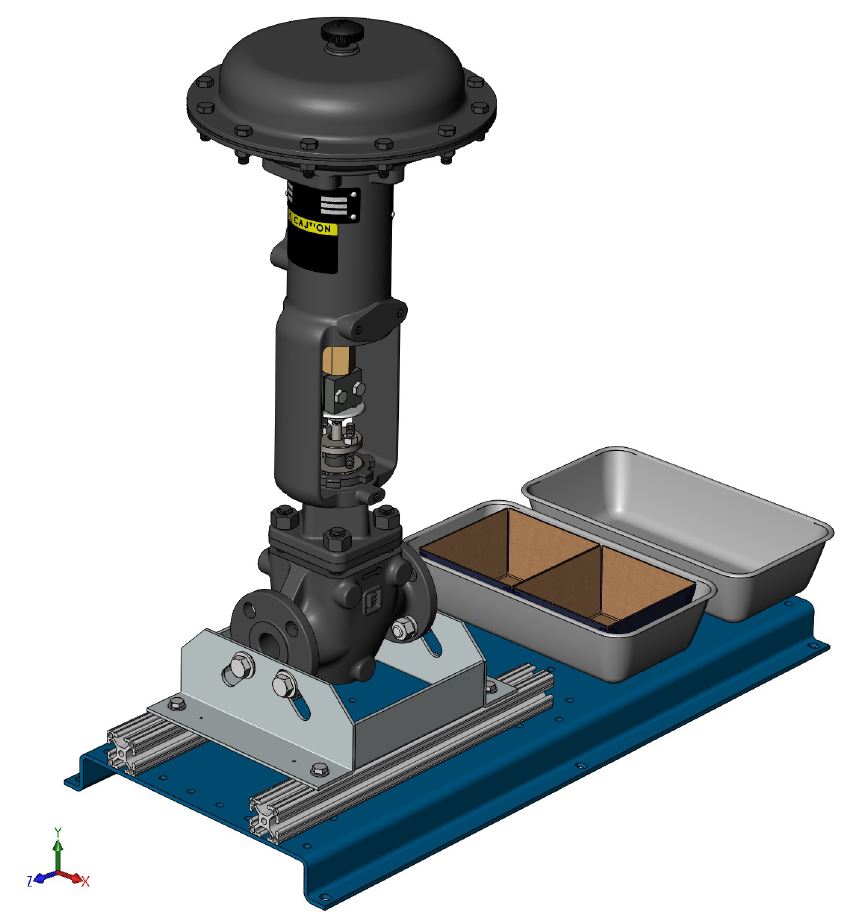

DAC Worldwide's Enhanced Control Valve Dissectible (255KE) is a realistic, hands-on valve sample that supports realistic classroom training in the disassembly, inspection, and reassembly of a full-size industrial diaphragm-actuated control valve as used in industrial process systems of all kinds. Additionally, the valve sample enhances training related to the operation, design, and maintenance of these common final control elements. Valve and actuator examples from a well-known US manufacturer are chosen for industrial training relevancy.

This “enhanced” dissectible package includes:

8-piece Replacement Parts Kit
5-piece Parts Organization Storage Tray
Manufacturer's Manual
Orientation and Exploded View Chart

This professionally-re-manufactured, heavy-duty, durably-coated, and fully-detailed teaching aid will provide years of service in the training lab or classroom.

Features & Specifications

Re-manufactured, 0.75-in. - 1.5-in. nominal size, industrial-duty, pneumatically-operated, control valve
Common valve makes and models by well-known US manufacturers are chosen for industrial relevancy
Cleaning, priming, and painting using powder coating and a high-durability, urethane coating
Replacement, plated hardware, where necessary
All original gaskets, seals, and seats included
8-piece Replacement Parts Kit
5-piece Parts Organization Storage Tray
Manufacturer's Manual
Orientation and Exploded View Chart
Welded, formed-steel, powder-coated, mounting weldment with provision for tabletop mounting or mounting on an optional baseplate and stabilization assembly
Provision for mounting on related optional bench, workstation, display, and storage rack products
