Progressive Cavity Pump Cutaway (Moyno/Roper)

Hands-On Industrial Training
Item Number:
278-195
DAC Worldwide Model: 278-195
Hands-On Industrial Training
Progressive Cavity Pump Cutaway (Moyno/Roper)

DAC Worldwide’s Progressive Cavity Pump Cutaway – Moyno/Roper (278-195) depicts a sectioned industrial progressing cavity pump that allows for convenient classroom or laboratory training in the operating characteristics, construction, and maintenance of these common process pumps used in a variety of sectors. Commonly found in oil and gas applications and other industrial applications where positive displacement flow with constant pressure and limited pulsation is needed, these unique pumps work well with viscous materials and those that are shear-sensitive.

Selected and assembled to support introductory process operations and maintenance training programs, this real-world learning solution provides the same utility as on-the-job equipment. The full-size, fully-detailed example of an actual real-world cavity pump gives learners a first-hand view into a component that is found in countless applications worldwide.

All of the pump’s components have been retained, allowing for a thorough, one-of-a-kind training experience using these common pieces of process equipment.

DAC Worldwide’s Cutaways Enhance Training with Hands-On Industrial Components

The Progressive Cavity Pump Cutaway provides a realistic training-introduction to progressive cavity pump components. The pump’s components are industrial-grade made by leading manufacturers, mimicking what students might encounter on the job for industrial relevancy.

Carefully-planned cutaway areas and color-coding combine to showcase the internal configuration of the pump. Seal features, hardware locations, and bearings are retained, allowing for use in basic maintenance-related training. This training demonstrator will make introductory courses in pump maintenance and operation more productive, realistic, and memorable.

This screw pump cutaway will enhance both general and plant-specific operations and maintenance training programs. Additionally, the equipment used within the trainer is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. Finally, the Manufacturer’s installation and maintenance manual will also be provided.

Features

  • Sectioning of an actual industrial diaphragm pump. (Common models from well-known manufacturers are chosen for industrial relevancy)

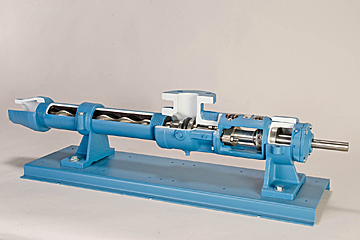

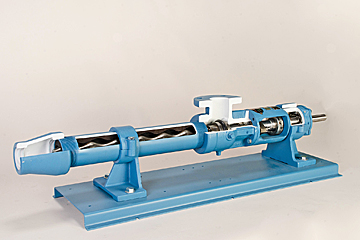

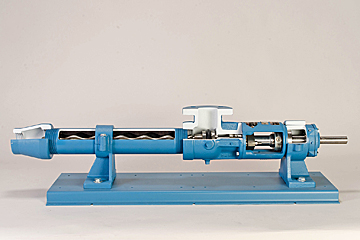

  • A full longitudinal cutaway showcases the helical rotor, stator cavity, bearing arrangement, connecting universal joints, and seals
  • Cleaning, priming, and painting using a high-durability urethane coating
  • Color-coding of cutaway surfaces, seal elements, and pumping surfaces using contrasting colors
  • Replacement plated hardware, where necessary
  • All gaskets, seals, and bearings visible
  • 7-Gauge formed-steel baseplate, with provision for tabletop mounting or mounting on related DAC workstation and display products
  • Crating for shipment via motor freight
