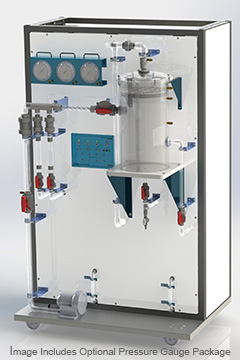

DAC Worldwide’s Vertical Separator Trainer (295-101) is a reduced-scale, three-phase vertical separator that mimics its real-world counterpart by using alternate production stream components, refined oil, air, and water.
This Vertical Separator Training System includes components like on-board supply pumps, a regenerative blower, a static mixer, metered valves, flowmeters, a custom-fabricated, large-diameter, clear acrylic, vertical separator vessel, and more. The vessel features internal components including an inlet diverter, overflow weir, mist eliminator, and strategically- located and reinforced outlet connections.
DAC Worldwide’s Oil & Gas Production training product is mounted on a mobile, formed-steel, powder-coated support frame assembly that can be moved through standard doors and from classroom to classroom.
Oilfield separators use gravity separation to efficiently separate mixed raw oil and gas production streams into their component parts: crude oil, gas, and water. An inlet diverter immediately meets the flow of crude oil and a spreader at the oil-water interface helps to separate oil from water.
Process control systems maintain precise control of liquid and gas variables, such as liquid level, flow rate, pressure, temperature, and pH level. These multifaceted systems are a critical part of major industries like power generation, refineries, petrochemicals, chemical manufacturing, pharmaceuticals, biotechnology, and food processing and bottling.
DAC Worldwide’s 3-Variable Process Control Training System (601-000) is a working, large-scale, fluid process system allowing for hands-on training relating to the measurement and control of process variables including level, pressure, and flow.
DAC Worldwide's Vertical Separator Training System Plus (295-101-PAC) is a realistic working demonstration separation system that duplicates the process at a reduced scale using alternate production stream components: refined oil, air, and water.
Our learning programs develop job-ready skills that have been proven time and again. Take a look at how we can help you be successful!Colleges are challenged to offer courses whenever students are available – and frequently, wherever they are available. Students want courses that are available on campus as well as from home while also providing strong hands-on skills for the technology demands facing them. Meeting these demands is no small task.
Amatrol has learning programs that allow colleges to excel in this demanding environment. We offer a full range of learning systems, both in a traditional equipment lab setting as well as in a virtual lab, that meet and exceed students' expectations.
