ACR Liquid Line Filter/Drier Cutaway
Hands-On Cutaway Trainers with Industrial Components
Item Number:
373-601

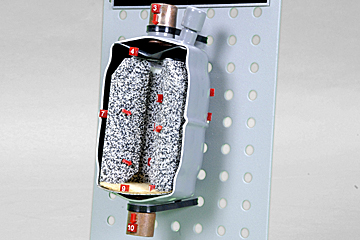

DAC Worldwide’s ACR Liquid Line Filter/Drier Cutaway (373-601) is a carefully-crafted, sectioned example of a commonly-encountered liquid line filter/drier. Liquid line filter/driers are designed to protect refrigeration system components from the negative effects of entrained water, formed acids, and debris. These simplistic protective devices act as guardians for expensive system compressors, evaporators, and metering devices.
This economical, sectioned example showcases the device’s operating principle, internal components, and related installation concerns. Multiple cutaways unveil all internal components, which enhances classroom training in HVAC system design, maintenance, troubleshooting, and preventive/predictive maintenance.
The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide. This professionally-crafted component sample will enhance any training activity relating to commercial and industrial air conditioning and refrigeration systems.
Take Training to the Next Level with Hands-On Cutaway Industrial Components

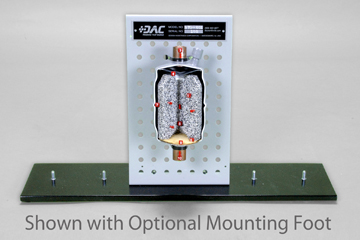

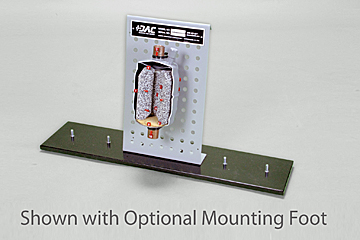

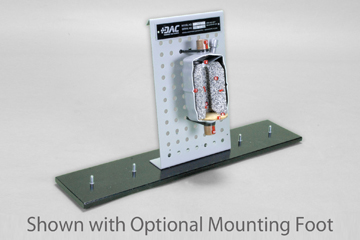

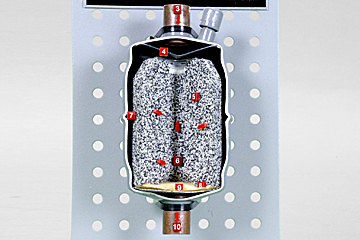

This ACR Liquid Line Filter/Drier Cutaway provides a full cutaway view of a liquid line filter/drier that exposes the complete internal components and operating principles. Color coding, flow arrows, and numbered call-outs combine to make the device more informative to the inquiring student and more useful to the instructor. The device can be used independently using an optional tabletop mounting foot, or combined with similar devices on optional display and storage frame assemblies.
Economically mounted on a modular display panel, this sample panel can be combined with a variety of optional benchtop display fixtures and storage structures possess the ability to be removed from the baseplate for convenient classroom use. All of the cutaway’s components are also visible and have been retained, enhancing students’ visual learning. This professionally-crafted teaching aid will support instructor-led training and independent student self-discovery in a variety of vocational and academic air conditioning and refrigeration programs.
Finally, the equipment used within the cutaway is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. In addition, all of the component parts are color-coded to enhance the learning process.
Expand Training with Additional HVAC Model Options
The ACR Liquid Line Filter/Drier Cutaway is only one of DAC Worldwide’s expansive HVAC training cutaways, which includes a Heat Pump Reversing Valve Cutaway (373-505), and ACR Magnetic Check Valve Cutaway (373-510), a Condenser Pressure Control Valve Cutaway (KVR) (373-519), a Schrader Service Valve Cutaway (373-529), and more!
DAC Worldwide's HVAC cutaways enhance learning by providing a look inside components found in most HVAC systems including compressors, solenoids, and valves. On many of DAC Worldwide's cutaways, functionality has been retained and a hand wheel provided to demonstrate low-speed manual operation. Each cutaway is mounted on a modular, heavy-gauge steel baseplate and support assembly. For industrial training relevance, common models by well-known manufacturers are chosen. View the pdf to see the cutaway trainers available.
