Amatrol Basic Hydraulic Troubleshooting Learning System

Amatrol’s Basic Hydraulic Troubleshooting Learning System (950-HTB1) teaches how to troubleshoot hydraulic systems and components such as hydraulic motors, directional control valves, and cylinders. The knowledge gained from the 950-HTB1’s hardware and curriculum is extremely valuable for maintenance technicians within industries like manufacturing, automotive, agriculture, construction, and many more! This learning system will also serve as a solid foundation towards attaining certifications.

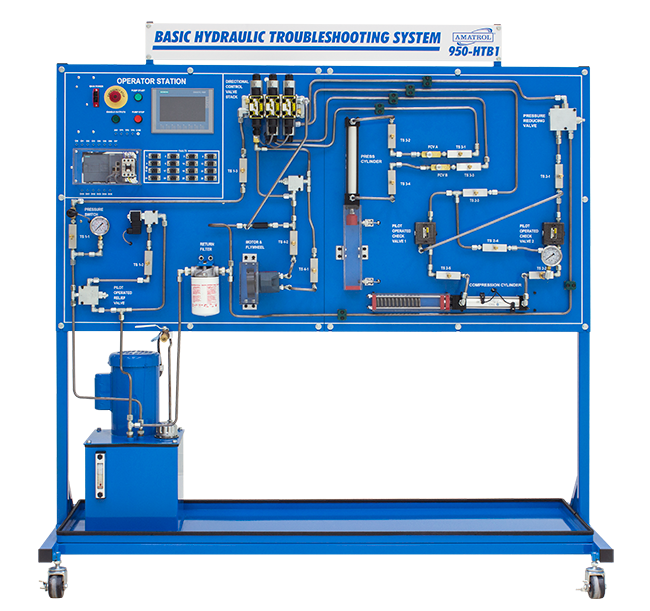

The 950-HTB1 will include a mobile workstation, control cabinet with Siemens S71200 PLC, hydraulic power distribution, four hydraulic actuator branches, a hydraulic power unit, flow meter, pressure gauge, and multimeter. Learners will use these components in real-world applications while studying major topics like hydraulic pump troubleshooting, hydraulic actuator and directional control valve troubleshooting, hydraulic valve troubleshooting, and hydraulic systems troubleshooting. This system includes industry-grade components for both greater learner comprehension and durability to stand up to frequent use.

Get Hands-On Practice Troubleshooting Over 35 Faults On Valves, Pumps, and Motors

The 950-HTB1 includes a large array of industrial-grade components on a mobile workstation, such as a Siemens S71200 PLC with HMI, a hydraulic power supply, supply and return lines, motor with flywheel, proximity switches, magnetic reed sensors, and a large selection of valves including relief, directional control, pressure reducing, check, cavitation, and air ingestion. Learners will use these components to practice hands-on troubleshooting skills that they can apply to real-world, on-the-job applications. Some of these skills include using an in-circuit test to troubleshoot a fixed-displacement pump, adjusting a cylinder cushion, troubleshooting a check valve, testing a hydraulic system by measuring fluid flow, and troubleshooting vibration in a hydraulic system.

Study the Symptoms of Hydraulic Component and System Failure for In-Depth Comprehension

The 950-HTB1’s curriculum first covers component-level faults before teaching learners how to troubleshooting system-wide problems. Sample topics include: describing the construction of three types of pressure test points, defining cavitation and explaining its effect, describing five symptoms of motor failure, describing seven symptoms of non-compensated flow control valve failure, and understand how to troubleshoot zero system pressure. This curriculum is presented in user-friendly interactive multimedia format that can be used in a classroom environment or for self-paced learning. This multimedia features stunning 3D graphics and videos, voiceovers of all of the text, and interactive activities and quizzes.

Includes Over Thirty-Five Hydraulic and Electrical Faults

The 950-HTB1 features over thirty-five manually inserted faults to help learners understand and practice common problems found in hydraulic systems. Some of these faults include: motor starter failure, defective pump, worn cylinder seals, blocked flow control valves, and blocked inlet ports.
