Compressor Service King Valve Cutaway

HVAC Training Models
Item Number:
373-195
DAC HVAC Training Cutaway
HVAC Training Models
DAC Worldwide Cutaways
DAC Model: 373-195

DAC Worldwide’s Compressor Service King Valve Cutaway (373-195) is a professionally-crafted, sectioned example of a commonly-encountered compressor service (King) valve used in air conditioning and refrigeration systems on compressors for maintenance and testing purposes. Commonly found on air compressors of various designs, the device can be used to remove refrigerant due to overcharging, refrigerant addition, as well as in compressor pressure measurement and testing.

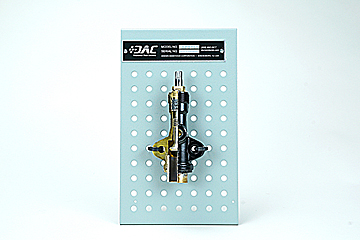

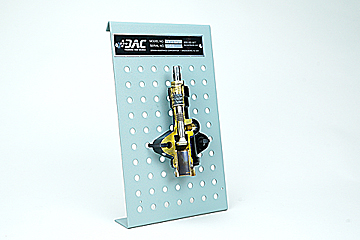

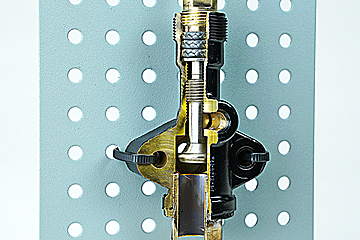

A full cutaway view of the valve body exposes the complete internal design characteristics, flow path, valve stem, compressor connection, backseat, front-seat, packing, and gauge port, while retaining its operational characteristics. Cutaway surfaces are enhanced through painting, making the geometry of all components more clear. Multiple cutaways unveil all internal components, which enhances classroom training in HVAC system design, maintenance, troubleshooting, and preventive/predictive maintenance.

The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide. This professionally-crafted, yet-economical component sample will enhance HVAC training activities in both the industrial and the educational setting.

Enhance Training with Hands-On Cutaway Industrial Components

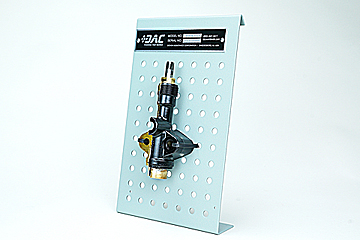

This Compressor Service King Valve Cutaway provides a full cutaway view of the compressor body that exposes the complete internal components and operating principles. Economically mounted on a formed-steel and powder-coated modular display panel, this sample panel can be mounted on a variety of optional benchtop display fixtures and storage structures.

The cutaway features carefully-planned cutaway areas that are individually mounted, and possess the ability to be removed from the baseplate for convenient classroom use. All of the cutaway’s components are also visible and have been retained, enhancing students’ visual learning. This carefully-crafted teaching aid will support instructor-led training and independent student self-discovery in a variety of vocational and academic air conditioning and refrigeration programs.

The equipment used within the cutaway is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. In addition, all of the component parts are color-coded to enhance the learning process.

Expand Training with Additional HVAC Model Options

The Compressor Service King Valve Cutaway is only one of DAC Worldwide’s expansive HVAC training cutaways, which includes a Hermetic Scroll Refrigeration Compressor Cutaway (373-130), an Open Drive Refrigeration Compressor Cutaway (373-140), an ACR Steel Ball Valve Cutaway (373-501), and more!


DAC Worldwide's HVAC cutaways enhance learning by providing a look inside components found in most HVAC systems including compressors, solenoids, and valves. On many of DAC Worldwide's cutaways, functionality has been retained and a hand wheel provided to demonstrate low-speed manual operation. Each cutaway is mounted on a modular, heavy-gauge steel baseplate and support assembly. For industrial training relevance, common models by well-known manufacturers are chosen. View the pdf to see the cutaway trainers available.
