Downsized Globe Valve Cutaway

Hands-On Technical Trainers

Item Number:

252D

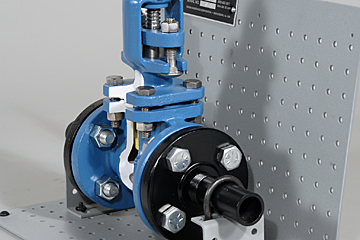

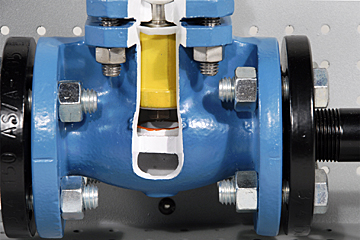

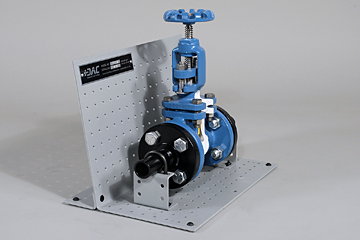

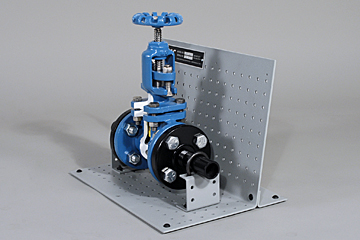

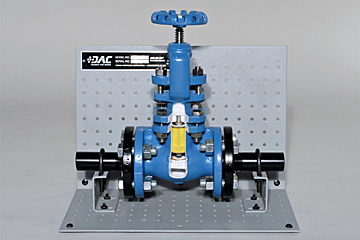

DAC Worldwide's Downsized Globe Valve Cutaway (252D) is an economical yet realistic, sectioned valve sample that allows for convenient classroom training in the design, construction, and maintenance of industrial globe valves. Through carefully-planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased. Seal features and hardware locations have been retained, allowing for “hands-on” maintenance training. This tabletop sample supports training in a variety of process-related industries.

Features and Specifications

Sectioning of an actual flanged industrial valve (common valve makes and models chosen for industrial relevancy) (Flanged, 0.75-in. NPS pipe size varieties are chosen)
Cleaning, priming, and painting of exterior surfaces using a high-durability, urethane coating
Powder-coating of internal surfaces
Color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors
Replacement, plated hardware where necessary
All gaskets, seals, and seats shown
13-Gauge, formed-steel, powder-coated, mounting stand with provision for tabletop or bench mounting, display, workstation and storage rack products
13-Gauge support clips, steel flanged support pipe spools, and plated connecting hardware
