Fire Tube Boiler Model

Boiler Operations & Commercial HVAC Training
Item Number:
356
DAC Training Models
Fire Tube Boiler Model

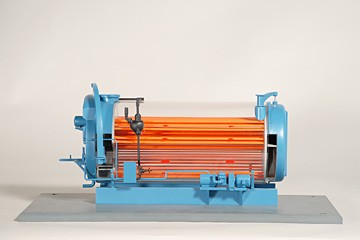

DAC Worldwide’s Fire Tube Boiler Model (356) is a highly-detailed scale model of a common fire tube, Scotch marine boiler, supporting training in the operation and maintenance of industrial boilers, as found within utility systems in industrial facilities and large commercial applications.

Based on a common make and model boiler, manufactured by Cleaver-Brooks, the product is a complete to-scale replication of one of the most common boilers in use today. Based on a 4-pass, dry back design, the model includes significant detailing of internal components, visible through a clear acrylic shell.

This teaching aid complements courses in industrial utility systems, boiler operations, and commercial HVAC.

Features & Specifications

  • Exact "to-scale" construction throughout.
  • Primary shell fabricated from 5" diameter clear acrylic tube, and allowing view of internal components.
  • Exterior detail including access door with davit, support skid, fan motor, representative oil delivery components, control panel, representative piping, flue gas outlet, air compressor and exterior burner detail.
  • Interior detail including representative insulation, burner/burner housing, air damper, tubesheets, tubes, flow arrows, rear door with representative refractory, and furnace liner.
  • Durable PVC baseplate with provision for tabletop mounting, and mounting on related DAC display racks.
  • Packaging for shipment via UPS or motor freight.
  • Product Dimensions 18" L x 9" W x 8" H
  • Weight 10 lbs.
