Fixed Head Bulk Storage Tank Model

Oil Production Hands-On Trainer
Item Number:
295-203
Fixed Head Bulk Storage Tank Model
DAC Worldwide Trainers
Oil Production Training Aid
Fixed Head Bulk Storage Tank Model

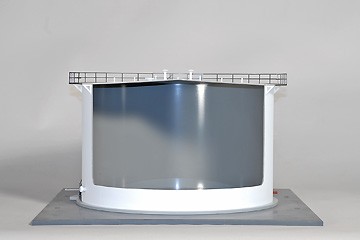

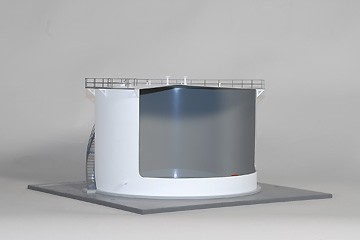

DAC Worldwide's Fixed Head Bulk Storage Tank Model (295-203) is a highly-detailed scale model of a common conical-roof, fixed-head storage tank as used in the storage of crude oil and other products within refineries, petrochemical plants, and other processing, production, and storage applications. This model reflects common designs and is a complete, to-scale replication. The primary shell includes a cutaway allowing for all internal features to be seen.

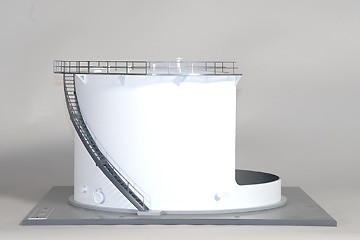

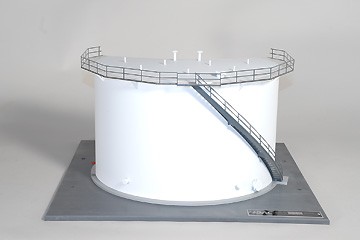

The model features exact "to-scale" construction throughout with a 15" primary tank diameter and a representative concrete foundation. Exterior detail includes access stairs, process connections, manways, vapor recovery connections, level transmitters, vents, plate detail, and access platforming. Interior detail includes a representative drain/sump.

The model is painted using a high-durability coating. It comes mounted on a durable PVC baseplate with provision for tabletop mounting or mounting on related DAC Worldwide display racks.

Features & Specifications

  • Exact "to-scale" construction throughout; 15-in. primary tank diameter
  • Representative concrete foundation
  • Exterior detail including access stairs, process connections, manways, vapor recovery connections, level transmitters, vents, plate detail and access platforming
  • Interior detail including; representative drain/sump
  • Durable PVC baseplate with provision for tabletop mounting and mounting on related DAC display racks
  • Painting using a high-durability coating

Dimensions

  • 20" x 20" x 11" (LxWxH)
  • 15 lbs.

Options

  • Recommended #902V - Mobile Display Stand
