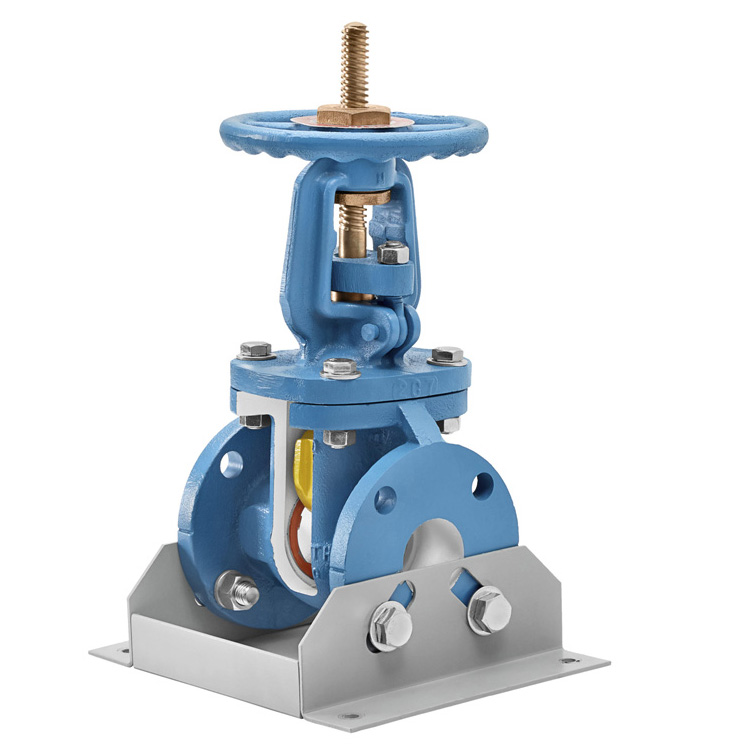

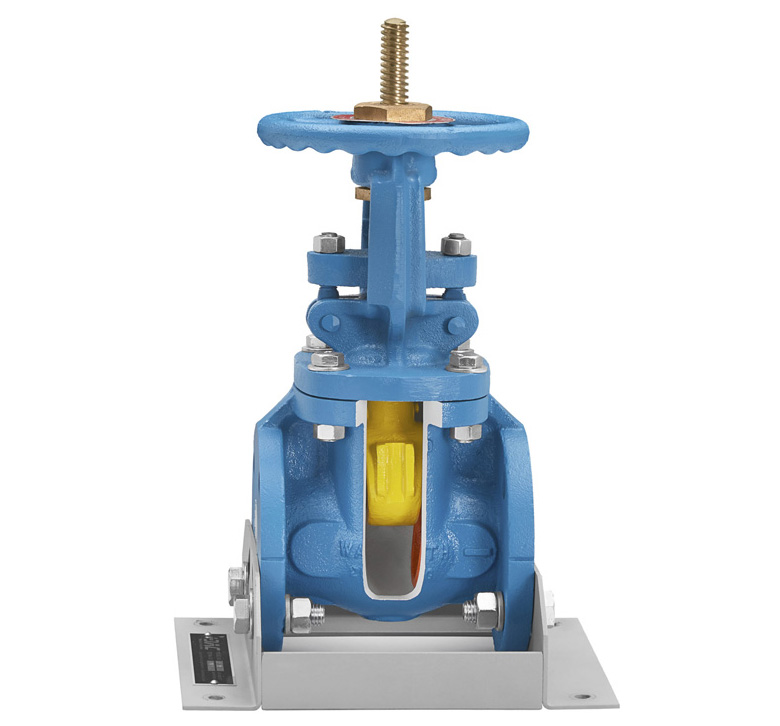

DAC Worldwide’s Gate Valve Cutaway (251) features an actual industrial gate valve with the complete internal configuration exposed and seal features and hardware locations retained to provide gate valve maintenance training, as well as shows how the valve operates and how it is constructed.
Gate valves are used as isolating valves for fully open or fully closed service in a piping system. Also referred to as sluice valves, the gate faces on these valves – normally wedge-shaped to apply pressure on the sealing surface – open by turning a wheel on a valve stem and thus move out of the fluid path. Advantages include that it is easy to shutoff, allows fluid to flow in either direction, allows for only minimal pressure loss, and –because they fully open –makes it possible to use a pipe-cleaning pig.
This industrial piping training component is a carefully sectioned gate valve that features color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors.
Visit DAC Worldwide for more information on the training models available.
DAC Worldwide’s Globe Valve Cutaway (252) takes classroom training in the operation, construction, and maintenance of an industrial globe valve, and enhances it by providing a visual, hands-on learning aide. The fully-detailed examples of industrial downsized valves give learners a first-hand view into a component that is found in various maintenance applications worldwide.
DAC Worldwide's Rotary Screw Compressor Cutaway (211-192) is a realistic, sectioned rotary screw compressor commonly found in manufacturing plants and other industrial applications. This device includes a 7-gauge formed-steel mounting baseplate, allowing for stand-alone use, bench-top mounting, or mounting on specialized DAC mounting workstations.
DAC Worldwide's Downsized Gate Valve Cutaway (251D) is an economical yet realistic, sectioned valve sample that allows for convenient classroom training in the design, construction, and maintenance of industrial gate valves. This tabletop sample supports training in a variety of process-related industries.
