EBlocks 2 to EBlocks 3 Upgrade Packs
BL4917
Matrix TSL's EBlocks 2 to EBlocks 3 Upgrade Packs provide a cost-effective way to modernize existing EBlocks training systems while protecting your current investment. Because EBlocks 2 and EBlocks 3 downstream boards use identical connectors, existing hardware remains fully compatible, allowing educators to upgrade without replacing their entire lab setup.

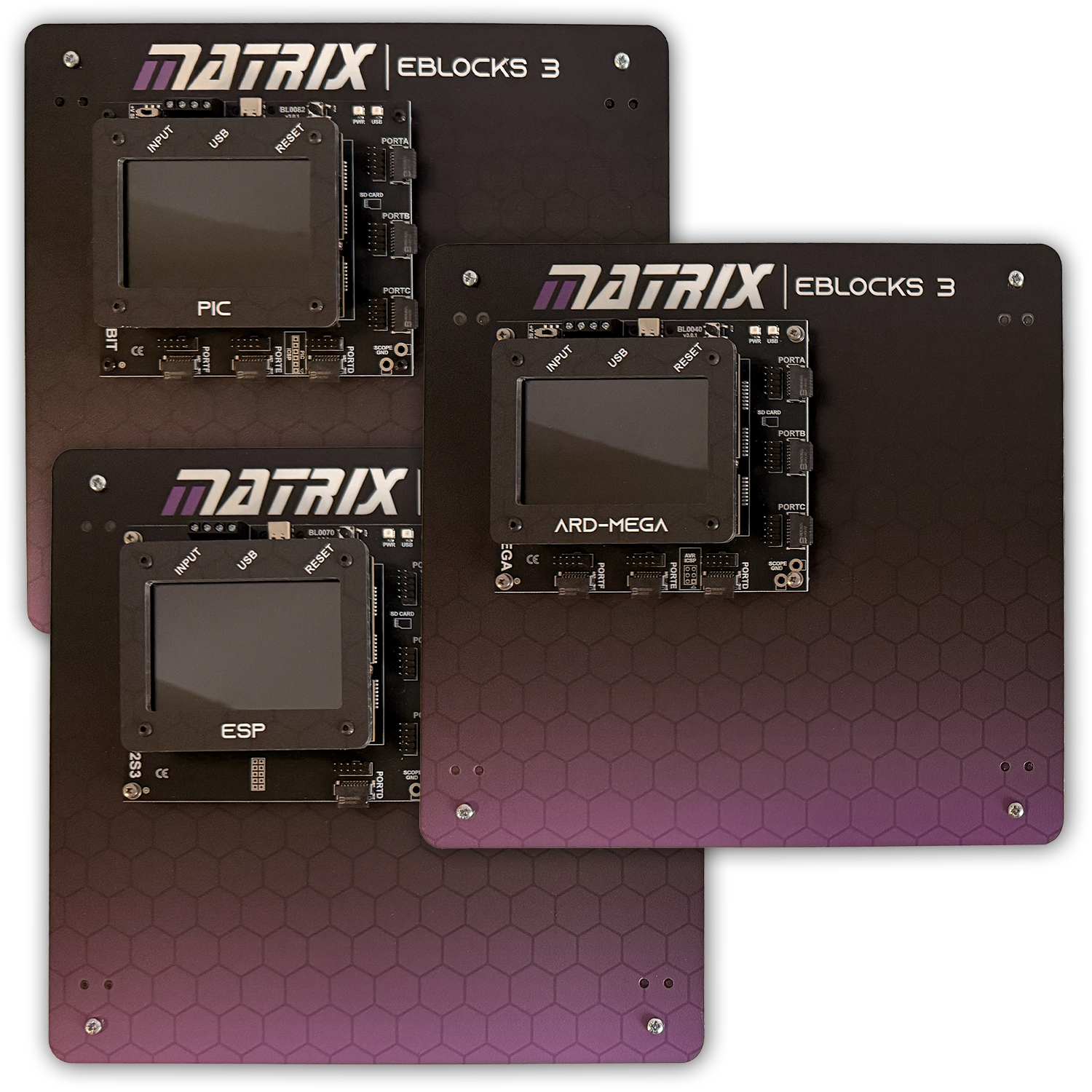

Each upgrade pack includes a new EBlocks 3 upstream board, plinth, power supply, and USB connection hardware. Whether you use PIC, ESP32, or Ard-Mega controllers, there is an upgrade path designed specifically for your platform.
- Upgrade existing EBlocks 2 systems to EBlocks 3
- Maintain compatibility with existing downstream boards
- Protect previous hardware investments
- Support modern embedded systems and programming curricula
- Compatible with the latest versions of Flowcode software
The PIC EBlocks 2 to EBlocks 3 Upgrade Pack provides a simple pathway for transitioning existing PIC-based training systems to the latest EBlocks 3 platform. Designed for educators and technical training programs, this upgrade allows continued use of existing downstream boards while providing improved performance and integration with modern software tools.
Key Features
- Designed specifically for PIC-based EBlocks systems
- Includes EBlocks 3 upstream board and plinth
- Updated power supply and USB interface included
- Maintains compatibility with EBlocks 2 downstream boards
- Supports modern embedded systems education
The PIC upgrade pack is ideal for institutions looking to extend the lifespan of existing equipment while maintaining continuity within their curriculum.
The ESP32 EBlocks 2 to EBlocks 3 Upgrade Pack upgrades existing systems to the latest EBlocks 3 platform while introducing the advanced capabilities of the ESP32 microcontroller. Featuring integrated Wi-Fi and Bluetooth connectivity, this option supports modern embedded systems, wireless communications, and IoT applications.
Key Features
- ESP32 microcontroller platform
- Integrated Wi-Fi and Bluetooth connectivity
- Supports IoT and wireless communication projects
- Maintains compatibility with EBlocks 2 downstream boards
- Improved processing power and performance
This upgrade is well suited for engineering, electronics, and Industry 4.0 programs seeking hands-on experience with connected devices and modern embedded technologies.
The Ard-Mega EBlocks 2 to EBlocks 3 Upgrade Pack provides an upgrade path for Arduino Mega-based EBlocks systems. Built around one of the most widely used educational microcontroller platforms, it offers a familiar development environment while taking advantage of the enhanced capabilities of EBlocks 3.
Key Features
- Arduino Mega-based platform
- Ideal for introductory and intermediate embedded systems training
- Compatible with existing EBlocks 2 downstream boards
- Includes EBlocks 3 upstream board, plinth, power supply, and USB interface
- Supports a wide range of programming and hardware interfacing projects
The Ard-Mega upgrade pack is an excellent choice for programs already utilizing Arduino-based curriculum and projects.
For the best experience and access to the latest functionality, Matrix TSL recommends upgrading to the latest version of Flowcode when transitioning to EBlocks 3. The software provides an intuitive programming environment, enhanced debugging tools, expanded device libraries, and Auto ID technology for automatic hardware detection and configuration.
