Oilfield Production Regulator Cutaway (Big Joe)

Hands-On Oil and Gas Technical Trainers

Item Number:

295-704

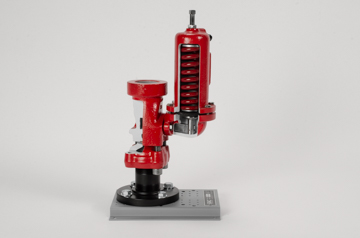

DAC Worldwide's Oilfield Production Regulator Cutaway (Big Joe) (295-704) is a sectioned direct-operating industrial regulator that allows for valuable and convenient classroom training in the operation, construction, and maintenance of an industrial direct-acting regulator.

Through carefully-planned sectioning and color-coding, the complete internal configuration of the regulator is exposed and showcased. Seal features and hardware locations have been retained, allowing for “hands-on” training in maintenance.

These regulators, commonly used in oil & gas production applications relating to separators, treaters, and other gas gathering and distribution applications, would be of interest to those involved in oil & gas production operations training as well as maintenance training.

Features & Specifications

Sectioning of actual hardware; common valve makes and models chosen
Cleaning, priming, and painting using a high-durability, urethane coating
Color-coding of regulator body, internal surfaces, seats, and closure devices using contrast colors
Replacement, plated hardware, where required
All seals and seats shown
16-Gauge, formed-steel, mounting baseplate with provision for tabletop mounting
Provision for mounting on related DAC bench, workstation, and storage rack products
Product Dimensions: 9" L x 11" W x 17" H

Recommended #902V - Mobile Display Stand
