Wellhead Backpressure Regulator Cutaway

Hands-On Oil Production Skills Training
Item Number:
295-703
DAC | 295-703

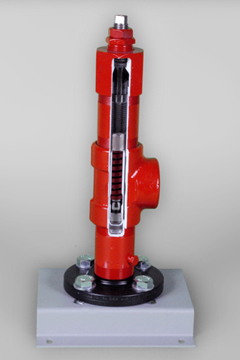

DAC Worldwide's Wellhead Backpressure Regulator Cutaway (295-703) is a sectioned specialty regulator example for both convenient classroom and laboratory training in the operation, construction, and maintenance of three industrial back pressure regulators (BPRs), as used in gas and oil service in the oilfield.

These common regulators are often used to maintain steady pressure on an oil column, assure a continuous flow of a producing low pressure well, and are regularly found in Xmas tree assembles in the oilfield. Through carefully planned sectioning and color-coding, the complete internal configuration of the regulating valve is exposed and showcased. Seal features and hardware locations have been retained, allowing for “hands-on” training in maintenance. These valves, commonly used in oil & gas production applications and commonly encountered in production wellheads, and christmas trees, would be of interest to those involved in oil & gas production training.

Features & Specifications

  • Sectioning of actual hardware; common regulator makes and models chosen for petroleum industry relevance
  • Cleaning, priming, and painting using a high-durability, urethane coating
  • Color-coding of valve body, internal surfaces, seat, and closure devices using contrast colors
  • Replacement, plated hardware where required
  • All seals and seats shown
  • 7-Gauge, formed-steel, powder-coated mounting baseplate, and steel pipe support stanchion with provision for tabletop mounting
  • Provision for mounting on related bench, workstation, and storage rack products
  • Product Dimensions: 12" L x 13.5" W x 18" H

Recommended #902V - Mobile Display Stand
