Treater Dump Valve Cutaway

Realistic, Hands-On Oil Production Training

Item Number:

295-723

Hands-On Oil Production Training Equipment

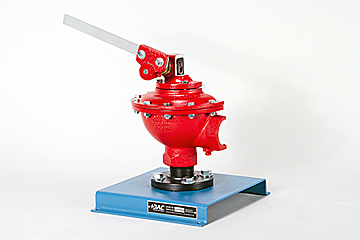

DAC Worldwide's Treater Dump Valve Cutaway (295-723) is a sectioned industrial specialty oilfield valve that allows for valuable and convenient classroom training in the operation, construction, and maintenance of on-off type dump valves used on treaters, separators, gun barrels, free water knockouts, and other common oilfield separation, accumulation and collection equipment.

Operating on hydrostatic pressure of a related column of liquid, differential pressure allows these valves to cycle automatically and dependably, releasing wastewater from separation equipment.

Through carefully planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased. Seal features and hardware locations have been retained, allowing for “hands-on” training in maintenance.

Features & Specifications

Sectioning of actual hardware; common valve brands and models from leading US manufacturers such as Kimray and FMC are chosen for oil & gas training relevancy
Cleaning, priming, and painting using a high-durability, urethane coating
Color-coding of upper and lower bodies, internal surfaces, seats, and closure device, using contrast colors
Full 90-degree cutaway through both upper and lower housings unveiling all primary components including balancing diaphragm, seat, closure, gas connection, and control pivot and stem system
Replacement, plated hardware, where required
All seals and seats shown
7-Gauge, Formed-steel, and powder-coated base assembly with provision for tabletop mounting
Provision for mounting on related DAC bench, workstation, and storage rack products
Product Dimensions: 13.5" L x 12" W x 14.5" H
