Adjustable Oil Field Choke Valve Cutaway
Oil and Gas Cutaway Trainers
Realistic Oil and Gas Training

DAC Worldwide’s Adjustable Oil Field Choke Valve Cutaway (295-711A) is a sectioned, specialty valve sample that supports training in the design features, internal components, and maintenance of adjustable choke valves used in oil and gas production operations.

Used as an essential pressure break-down and flow control device in wellhead assemblies, these large-scale needle valves are common in both on-shore and off-shore applications.

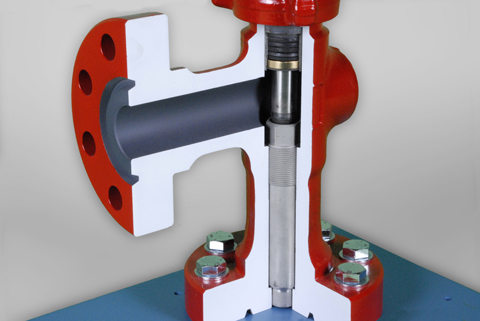

A full 90° cutaway of the valve body showcases all primary internal components, including stem, seat/orifice bean, and seal components. Distinctive painting enhances visibility of cutaway services and internal flow paths.

Features & Specifications

  • Sectioning of actual hardware, providing a complete view of the stem, seat/restricting orifice bean, and seal components (common 2-1/16" oilfield valve brands and models chosen for industrial training relevance).
  • Cleaning, priming, and painting using a high-durability urethane coating.
  • Color-coding of valve body, internal surfaces, seat, and internal flow path using high-contrast colors.
  • Replacement plated hardware where necessary.
  • All gaskets, seals, and seats shown.
  • 7-gauge, formed-steel mounting baseplate with provision for tabletop mounting or mounting on related DAC Worldwide bench, workstation, and display rack products.
  • Packaging for shipment via motor freight.
  • Product Dimensions: 18" L x 14" W x 24" H
