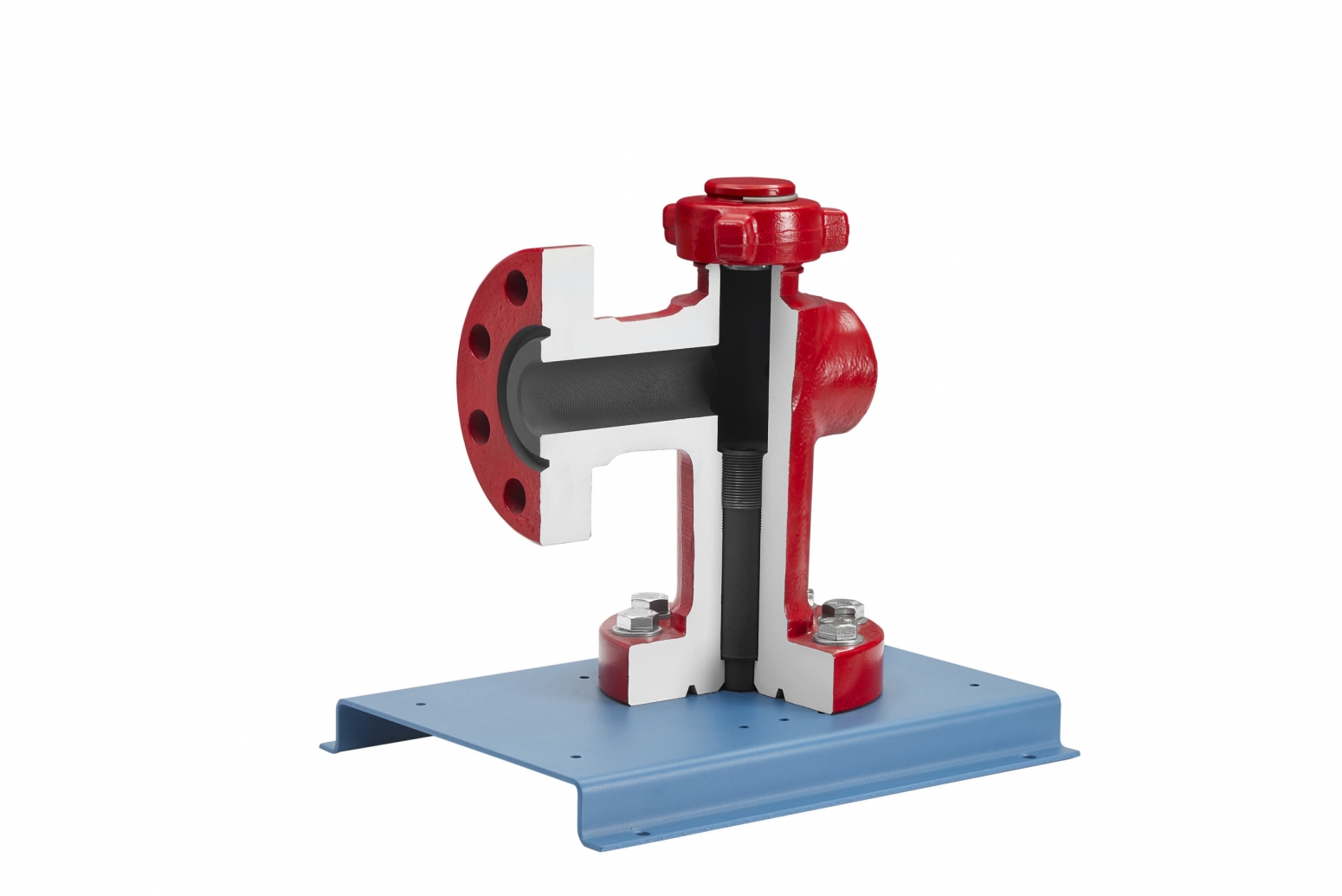

Barrel Choke Valve Cutaway

Realistic, Hands-On Oil and Gas Training
Item Number:
295-711
DAC Model: 295-711

DAC Worldwide’s Barrel Choke Valve Cutaway (295-711) is an actual industrial valve sample that allows for effective classroom or laboratory training in the operation, construction, and maintenance of a fixed (bean-type) choke valve.

These industrial valves are commonly used in oil and gas production operations and often found on wellhead assemblies, production manifolds, and kill manifolds.

Through carefully planned sectioning and color-coding, the complete internal configuration of the choke valve is exposed and showcased. Seal features and hardware locations have been retained, allowing for “hands-on” training in disassembly and maintenance.

Features & Specifications

  • Sectioning of actual hardware, providing a complete view of the flow channel, bean insert, and seat (common choke valve brands and models chosen, per API 6A, for industrial training relevance).
  • Cleaning, priming, and painting using a high-durability, urethane coating.
  • Color-coding of valve body, internal surfaces, seat, and closure devices using contrast colors.
  • Replacement plated hardware where necessary.
  • All gaskets, seals, and seats shown.
  • Formed-steel, 7-gauge mounting baseplate with provision for tabletop mounting and mounting on related DAC Worldwide bench, workstation and display rack products.
  • Packaging for shipment via motor freight.
  • Product Dimensions: 18" L x 13.5" W x 17" H

Recommended #902V - Mobile Display Stand
