Advanced Manufacturing CERT M20 Cell

Take your training to the next level with a robot to train future industry employees.
Item Number:
AM-CERT
Advanced Manufacturing Cert Cell
APT and FANUC Advanced Manufacturing Training Cell
APT and FANUC Advanced Manufacturing Training System

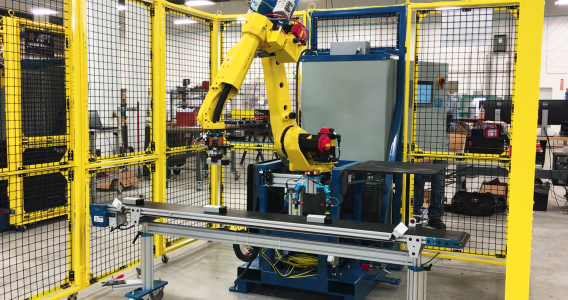

Advanced Manufacturing Training Cell

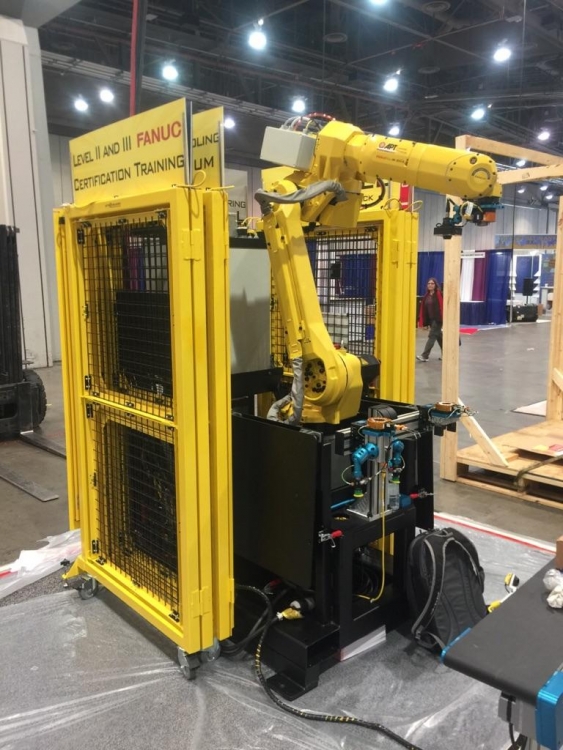

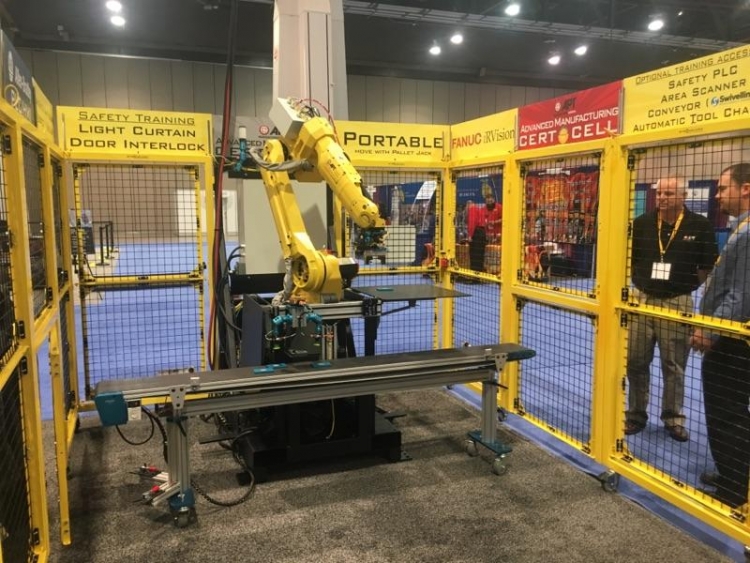

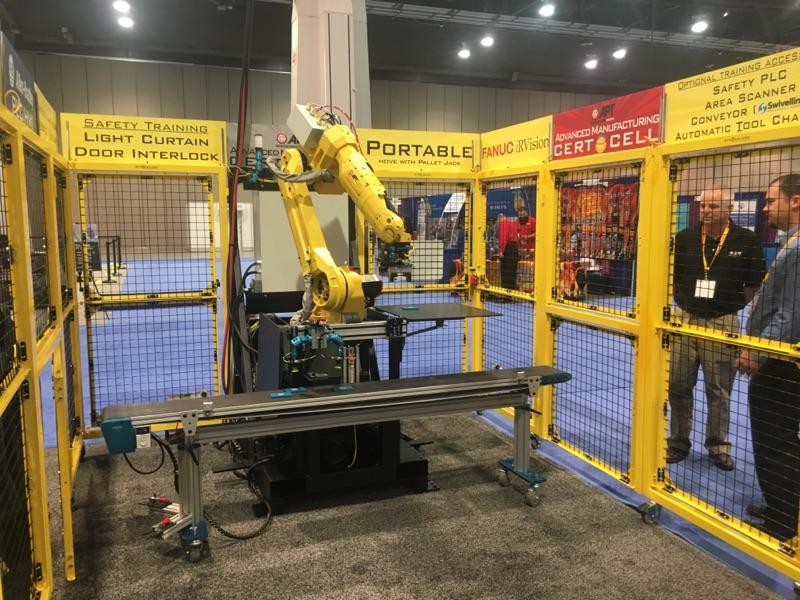

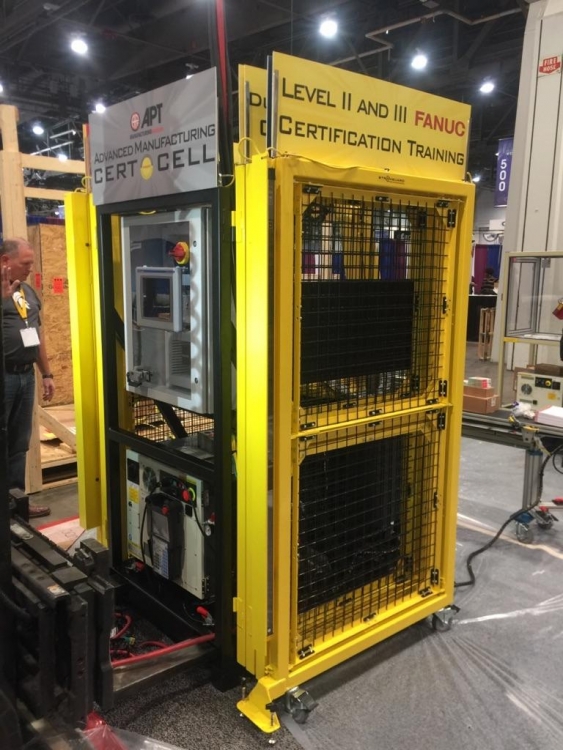

Level II & III Training
Level II & III Training
Level II & III Training
Level II & III Training FANUC Certification Training
Level II & III Training FANUC Certification Training
Level II & III Training FANUC Certification Training

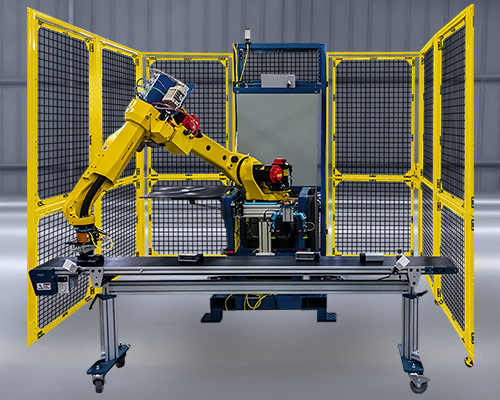

Introducing, the AM-CERT, a FANUC CERT Cell specifically built for Advanced Manufacturing.

FANUC America and APT Manufacturing Solutions partnered to develop educational “cells” for Advanced Manufacturing CERT training.

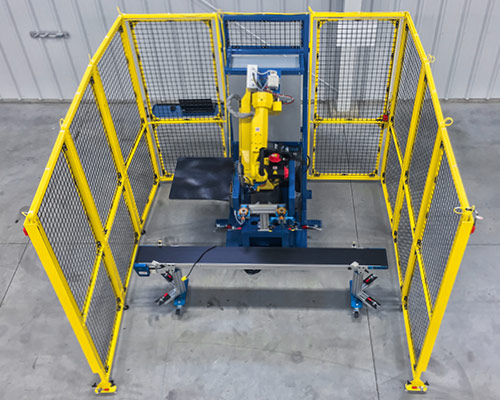

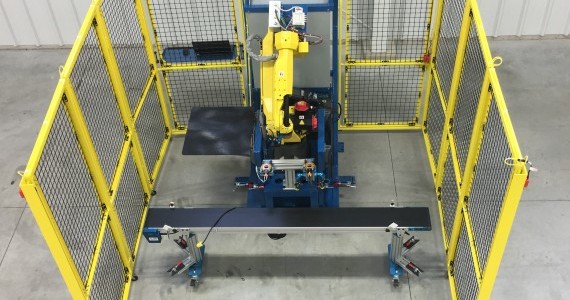

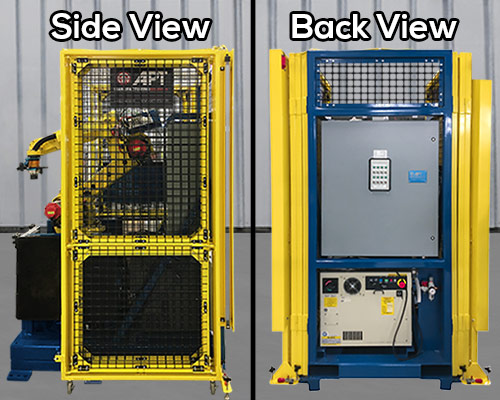

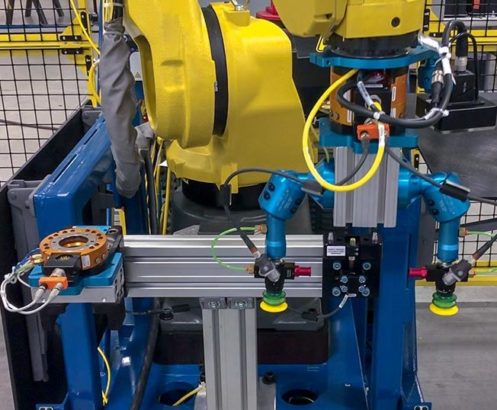

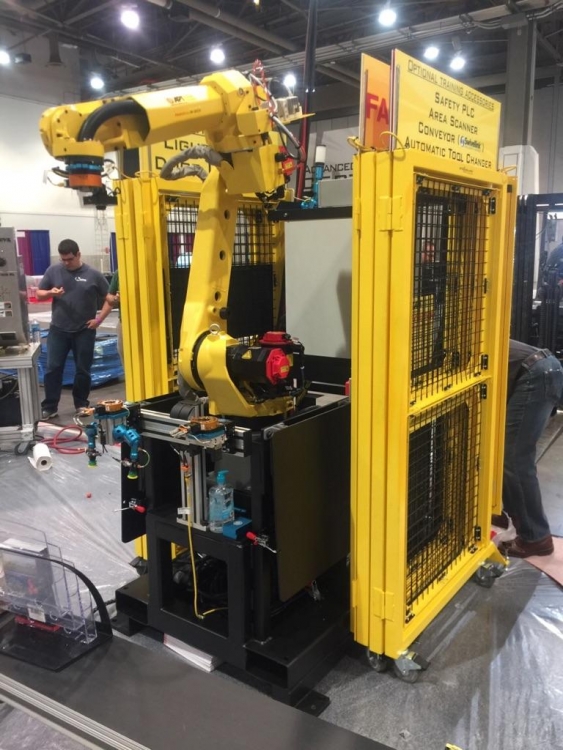

The APT AM-CERT Cell utilizes a FANUC M10 or M20 robot with communication to a PLC, multiple End of Arm Tooling options, custom folding fencing, and safety training features built into a single system that is portable using a pallet jack or forklift. To accommodate the limited space in education environments, this cell is designed to expand to a 10’ x 10’ work cell giving adequate area for conveyors, palletizing, or pick and place, and when you are done just fold up the guarding to have a cell that is now only 54” wide by 72” deep.

The APT AM-CERT is a full-featured large robot cell using the full-sized FANUC R30iB robot controller platform, fully integrated to Rockwell Automation CompactLogix PLC using Studio 5000 based programming and a Rockwell PanelView Plus 10” interface touch screen. This cell can teach PLC programming and advanced robot material handling in one self-contained, transportable cell. Advanced safety can be explained by use of safety interlock switches and light curtain or area scanner fully integrated into the robot and P

LC safety circuit. The cell is ready for the optional conveyor to supply parts to the robot or away from the robot to outside the safety fencing.

Students will gain hands-on experience with standard industrial components they are most likely to see in real manufacturing environments. Learn robot program calls from a PLC based on decisions. Test I/O, motor operation, safety inputs, and vision-guided robotics.

Curriculum

FANUC Robotics Courses:

  • Handling Tool Operation and Programming
  • Handling PRO
  • iR Vision 2D
  • Advanced TPP
  • DCS

Rockwell Automation Courses:

  • CCP 183: Ethernet / IP Configuration and Troubleshooting
  • CCP 146: Logix 5000 System Fundamentals
  • CCP153: Maintenance and Troubleshooting
  • CCP 151: Basic Ladder Logic Programming
  • CCP 143: Ladder Logic Project Development
  • CCV 204-A: FactoryTalk View ME & PanelView Plus Programming
  • INA 201: Industrial Network Architecture Foundation
  • INA 202: Industrial Network Architecture Intermediate
  • CCP 251: Advanced Logix 5000 Programmer
  • CCP 154: Studio Logix Designer Level 4 ST & SFC
  • SAF LOG 104: Guard Logix (and Banner) application development

APT Integration Courses:

  • Schematic Reading Fundamentals
  • Introduction to Integration – Labs and Exercises
  • Intermediate Concepts:
    Maintenance and Troubleshooting of Industrial Equipment
  • Introduction to Industrial Automation and Integration
  • Basic Integration Labs: PLC, HMI, Robot, Ancillary Components
  • Introduction to Safety Systems
  • Safety Systems, Standards Design, and Application

Career Paths and Certifications

Career Paths:

  • FANUC Robot Operator – Material Handling
  • PLC/Controls Operator
  • FANUC Robot Technician
  • Maintenance Technician
  • PLC/Controls Technician
  • Industrial Controls Integrator

NOCTI Certifications:

  • FCR-01 (FANUC Certified Operator 1) – Written
  • FCR-02 (FANUC Certified Operator 2) – Performance
  • FCR-T1 (FANUC Certified Robot Technician 2)

Software

Material Handling (MH) CERT School Comprehensive Educational Package

  • (25) online seat to take Robot Operations web course
  • (25) online seat to take HandlingTool or ArcTool Operation and Programming web course
  • (25) online seat to take HandlingPRO or WeldPRO web course
  • (25) ROBOGUIDE Simulation Software license

Material Handling (MH) CERT Instructor Training and Tool Kit

  • (1) online seat to take CERT Cart Safety Features web course
  • (1) online seat to take Robot Operations web course
  • (1) online seat to take HandlingTool or ArcTool Operation and Programming web course
  • (1) online seat to take HandlingPRO or WeldPRO web course
  • (1) seat to take a live HandlingTool or ArcTool Operation and Programming class at a FANUC facility
  • (1) ROBOGUIDE Simulation Software license
  • (1) FANUC Robot Operations Manual
  • (1) FANUC HandlingTool or ArcTool Operations and Programming Manual
  • (1) FANUC HandlingPRO (ROBOGUIDE Simulation) Manual

*FANUC Education Grant available for new Educational Institutes. Work with reseller to confirm details.

Rockwell Software Package

  • (1) EDU Toolkit Bundle with
  • (1) 1-year subscription
  • (1) Studio 5000 Logix Designer
  • (1) Studio 5000 View Designer

Plus over 100 more!

Rockwell e-Learning Package

  • (2) 1-year e-learning subscription
    • CompactLogix 5000 System Fundamentals
    • Basic Ladder Logic Project Development
    • Plus many more
    Product # Description
    AM CERT-10 Material Handling CERT Cell with M10 Robot
    AMCERT-20 Material Handling CERT Cell with M20 Robot
    Option 1 Swivellink Conveyor
    Option 2 Area Scanner 270 degree protection
    Option 3 Automatic Tool Change
    Option 4 Safety PLC Option
    Option 5 Transformer 208, 220, or 240V 3 Phase power

    More Information

    We can customize your training cell to fit your geographic location and common industries.

    Visit APT Manufacturing for more information.
