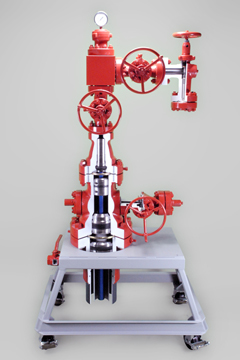

DAC Worldwide’s Extended Wellhead Assembly Cutaway (295-795E) depicts the complete assembly of components used in creating a wellhead, which are used in oil & gas production operations. The full-size, fully-detailed example of a high-pressure wellhead assembly gives learners a first-hand view into a component that is found in oilfield applications worldwide.

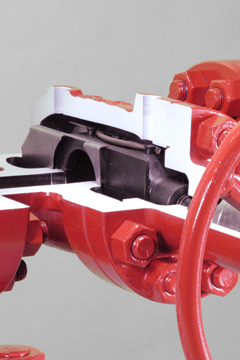

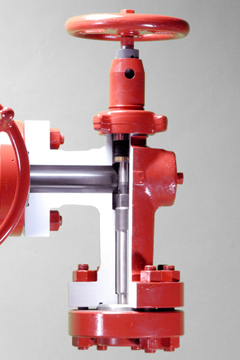

This basic mechanical cutaway includes a variety of sectioned components, such as casing head/starter head, tubing head, tree bonnet adapter, adjustable choke, and gate-type block valve. Additional assembly components include production casing hanger slips, wrap-around tubing hanger, as well as representative Xmas tree components such as master valve, production tee, pressure gauge, and additional choke.

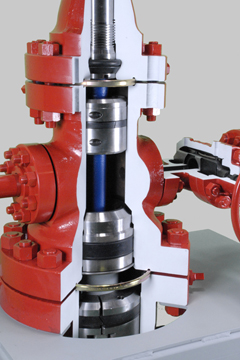

This Extended Wellhead Assembly Cutaway provides a realistic introduction to primary wellhead components and their fit-up. The common wellhead components are industrial-grade, mimicking what students might encounter on the job in the petroleum industry.

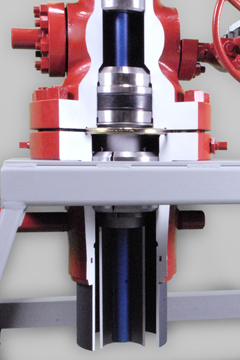

The cutaway features a steel-welded, heavy-duty support stand with a specialized strategic viewing window. That opening allows for full visibility of above-ground and sub-surface components, all while stabilizing the complete assembly. Hi-capacity locking casters are also provided for mobility.
The Extended Wellhead Assembly Cutaway is only one of DAC Worldwide’s expansive mechanical training cutaways, including the BOP Cutaway (#295-716), the Surface Safety Valve (SSC) Cutaway – Pneumatic-Type (#295-719P), the Oilfield Pressure Gauge Cutaway (#295-721), and more!
DAC Worldwide's Treater Dump Valve Cutaway (295-723) is a sectioned industrial specialty oilfield valve for training in the operation, construction, and maintenance of on-off type dump valves.
DAC Worldwide's Floating Ball Valve Cutaway (295-753) is a sectioned valve sample for training in the operating characteristics, construction, and maintenance of industrial floating-type ball valves.
DAC Worldwide’s LACT Component Cutaway and Demonstration Package (295-696) is a full-size, realistic mock-up of a generic LACT unit that has been purposefully modified for classroom training through the inclusion of multiple system component cutaways.
