FANUC CNC Simulator

Affordable and portable training solution on ‘real’ FANUC hardware.
Item Number:
A02B-0158-B100#US
FANUC CNC Simulator
FANUC CNC Education Simulator

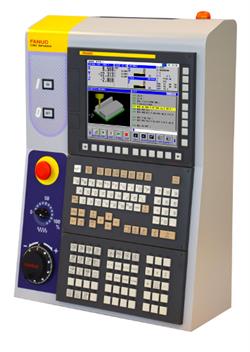

FANUC CNC Simulator

The FANUC CNC simulator is a perfect addition to the classroom and an essential component to gain maximum exposure to FANUC CNC controls when actual machine time is limited. Based on the FANUC 0iF platform, the simulator will allow you at power on to switch between milling and turning configurations to teach programming, navigation, and operation on the world’s most popular CNC control. Simple configurations make it easy to learn how to operate and edit data on a modern FANUC control. FANUC’s MGi conversational interface allows user to graphically generate programs that can be simulated in 3D, prior to being converted back to conventional NC programs to be used on machine tools using FANUC controls. Uploading and downloading (read and punch) functions are facilitated by means of the standard Flash ATA interface and USB interface, and DNC functions are supported by Ethernet and Flash ATA card.

Features

  • Switchable mill and lathe (turning) system in one simulator
  • 3-axis milling / 2-axis turning system plus one spindle
  • Manual Guide installed for conversational program creation and 3D simulation
  • Imperial / metric switchable
  • 512KB part-program storage, with 400 registered programs
  • 32 tool offset pairs
  • Workpiece coordinates G52 – G59 plus 48 additional on mill

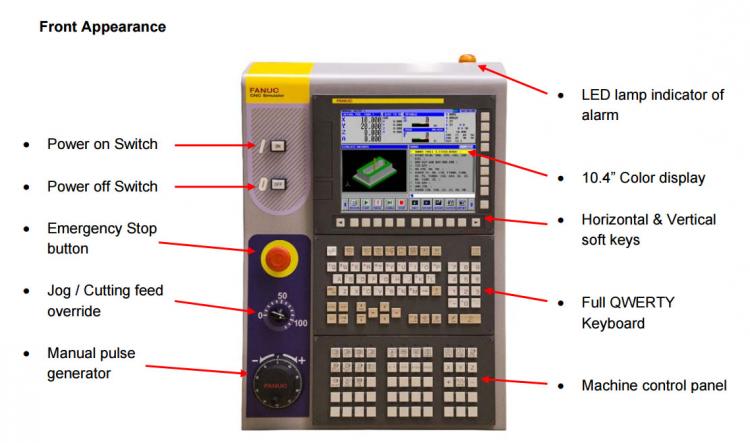

  • 10.4” Color LCD
  • Full QWERTY keyboard
  • USB, Flash ATA and Ethernet connectivity
  • Optional I/O link and RS232 serial interface
  • Power: AC 100 - 240, 0.8A – 0.4A, 50 – 60Hz
  • Power consumption: 80W
  • Weight: Approx. 26.4lb (12KG)
  • Dimensions: Approx. 16.5” x 7.5” x 23.3”

Designed with the Classroom in Mind

Students can perform operations and programming exercises away from the machine and then simply take the program to the machine. Features such as FANUC’s dual-screen display are standard features, so with additional PC software instructors can replicate the screen of the simulator on a PC, via the Ethernet connection for instructor-led classes on a projector.

Process-orientated conversational programming

For students advancing to a smaller job shop or tool room, user-friendly MANUAL GUIDE i conversational programming simplifies and enhances their productivity. This innovative part programming operation environment focuses the student on machine operations, rather than just Gcode, allowing a job to be completed in the shortest time possible.
